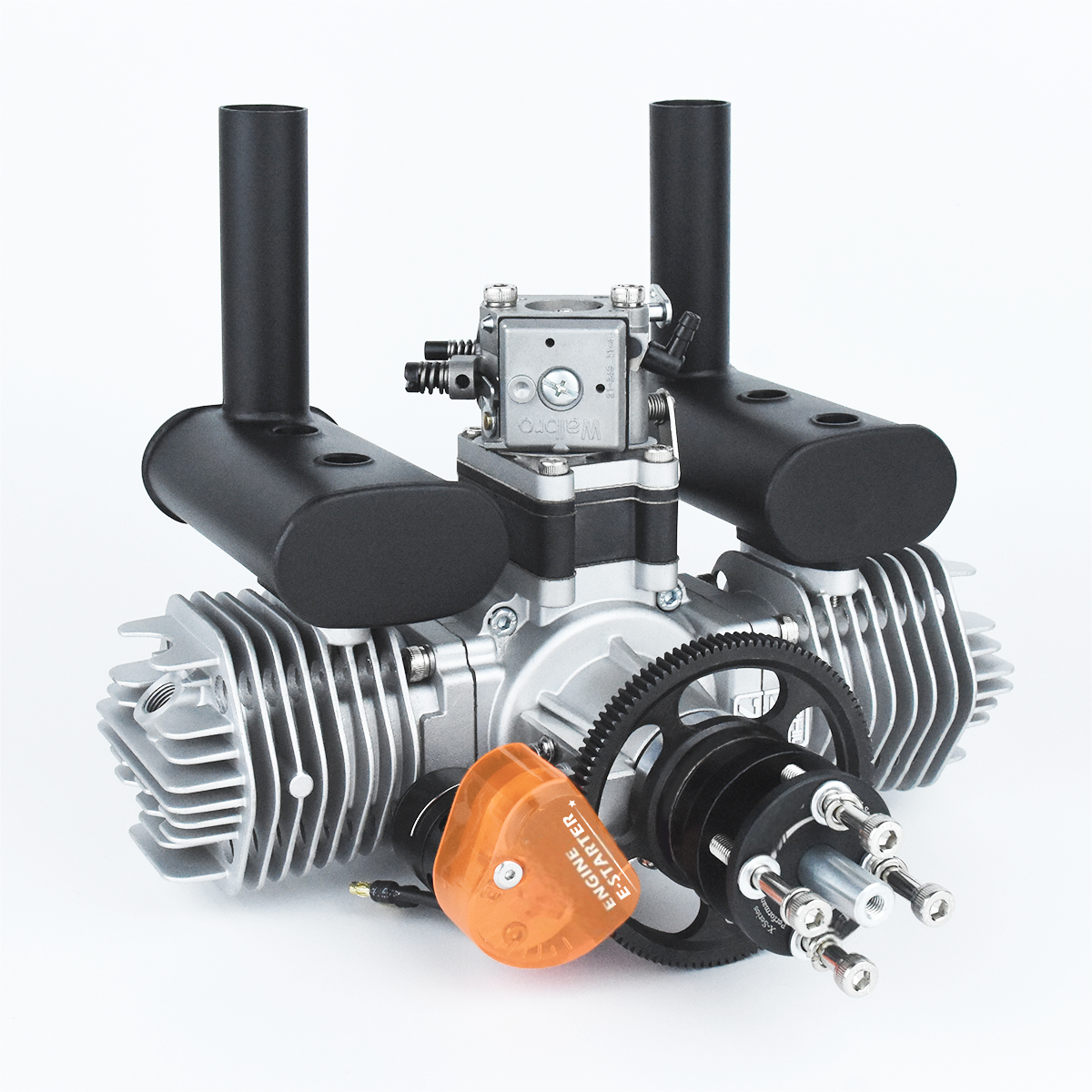

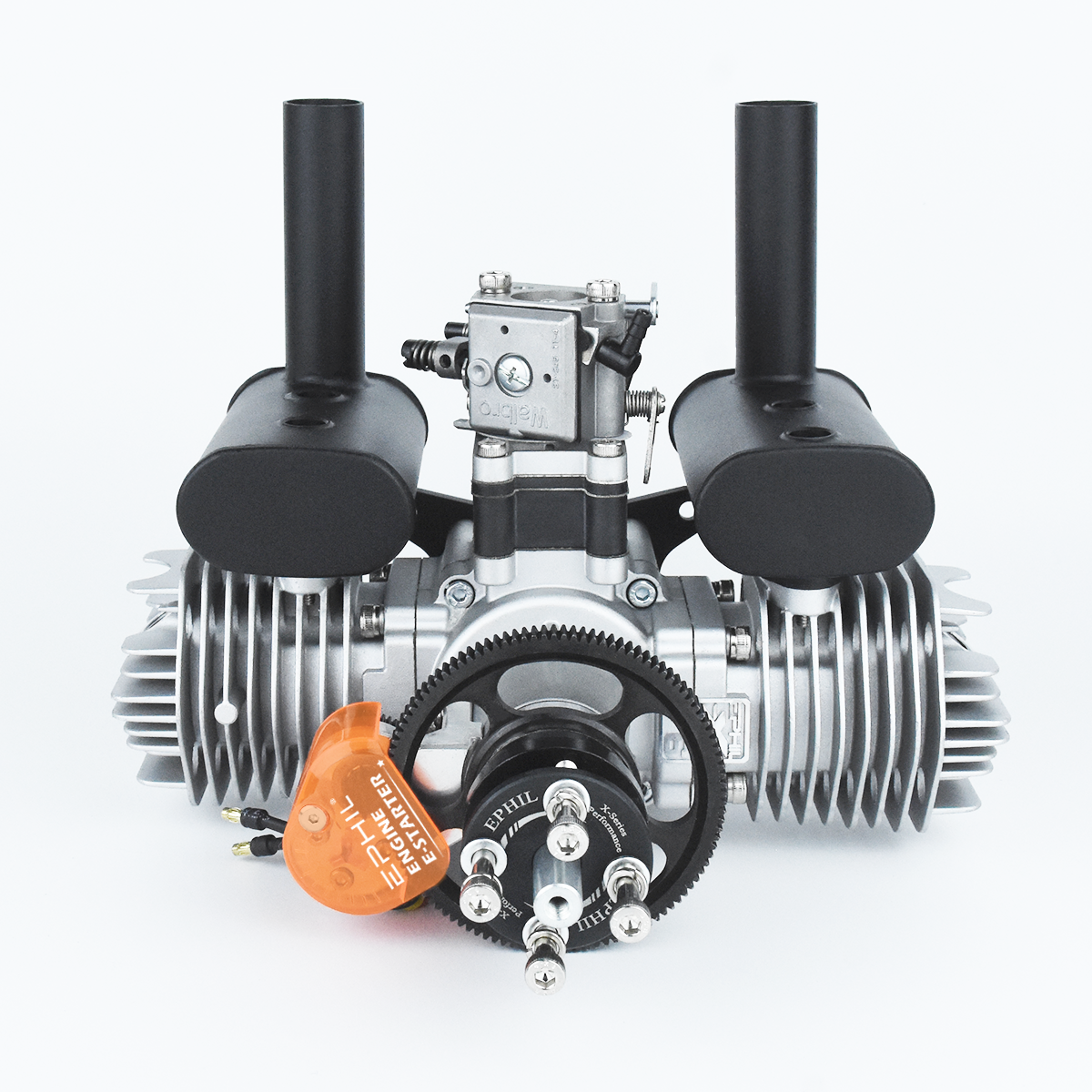

3I 76cc B2 2-cylinder gasoline engine with electric starter

Specifications

Model: 3i 76CC B2 E-Starter

Displacement: 76cc (4.64 cubic inches)

Power: 9.0 hp

RPM Range: 1600-7300 rpm (Test propellers: 24*8)

Bore: 39 mm (1.54 inches)

Stroke: 32.5 mm (1.28 inches)

Static Thrust: 18.5 kg @ 100 m altitude (40.8 lb @ 328 ft altitude)

Static Thrust: 16.8 kg @ 1800 m altitude (37.1 lb @ 5900 ft altitude)

Compression Ratio: 9:1

Lubrication Ratio: 30:1 (Fuel: Two-stroke engine oil)

Ignition Voltage: 6-14 volts

Spark Plug Type: CM6 Iridium Spark Plugs

Recommended Propellers: 22×10; 23×8; 23×10; 24×8

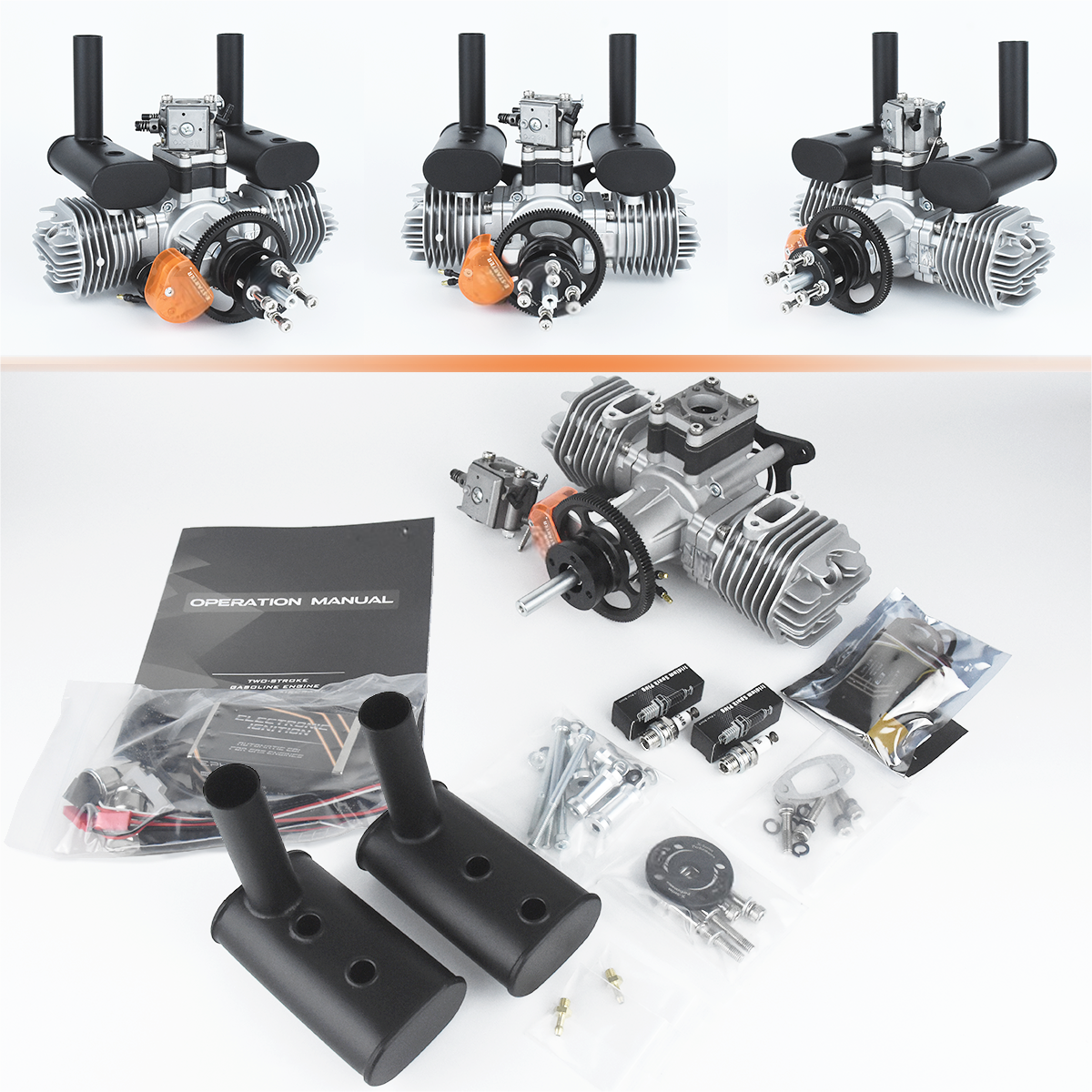

Main Unit Weight: 1935g

Muffler Assembly Weight: 145g (Left and Right Mufflers; Screws)

Aluminum Bracket Weight: 174g

Spark Plug Weight: 13.5g x 2 (CM6 x 2)

CDI (Ignition Diode) Weight: 175g

Starter/Stop Weight: 123g

ESC Weight: 36g

Total Weight: 2417g (5.3 lbs)

New Engine,More Power
Smooth operator Give your sport aircraft the low-vibration smoothness and unique sound of a horizontally opposed twin!
the gasoline engine is designed for large scale aircraft.
it combines with excellent quality and reasonable price.
