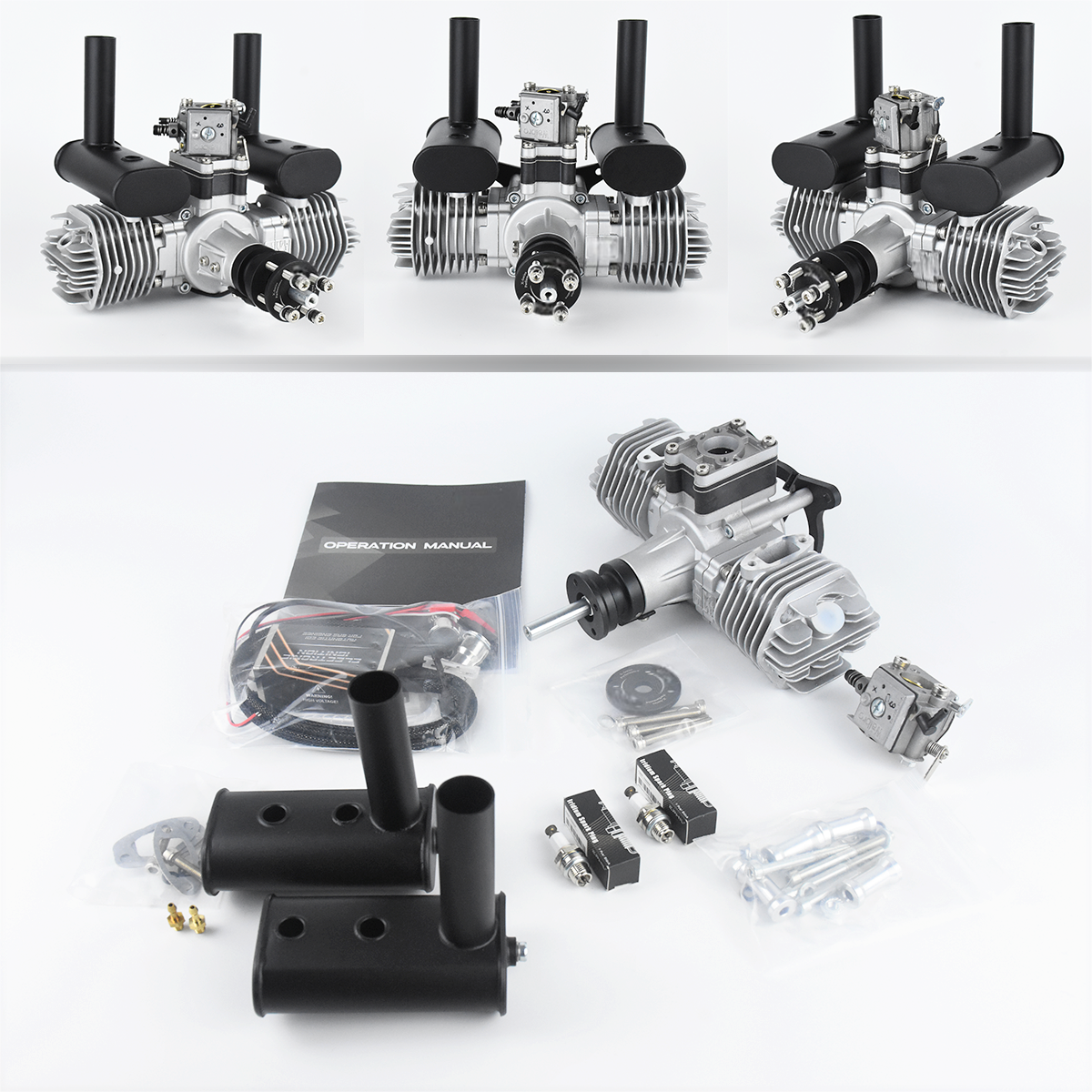

3I 76CC B2 2-Cylinder engines
PARAMETERS
Model: 3I 76CC B2
Displacement: 76cc (4.64 cu in)
Performance: 9.0 HP
Speed Range:1600-7300 RPM (Test Propeller-24*8)
Bore: 39 mm (1.54 in)
Stroke: 32.5mm (1.28 in)
Static Thrust: 18.5 kg @ 100 m ALT (40.8 Ib @ 328 ft ALT)
Static Thrust: 16.8 kg @ 1800 m ALT (37.11b @5900 ft ALT)
Compression ratio: 9:1
Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
Ignition Voltage: 6-14 V
Spark Plug Type: CM6 Iridium Spark Plug
Recommended Propeller:22×10; 23×8; 23×10; 24×8
Weight of Main Engine: 1688g
Weight of Muffler Set:174g (L&R Mufflers;Screws)
Weightof AluminumStandoffsSet:72g
Weight of Spark Plug: 13.5g*2 (CM6*2)
Weight of CDI (Ignition): 173g
Total Weight: 2134g (4.7 Ib)
New Engine,More Power

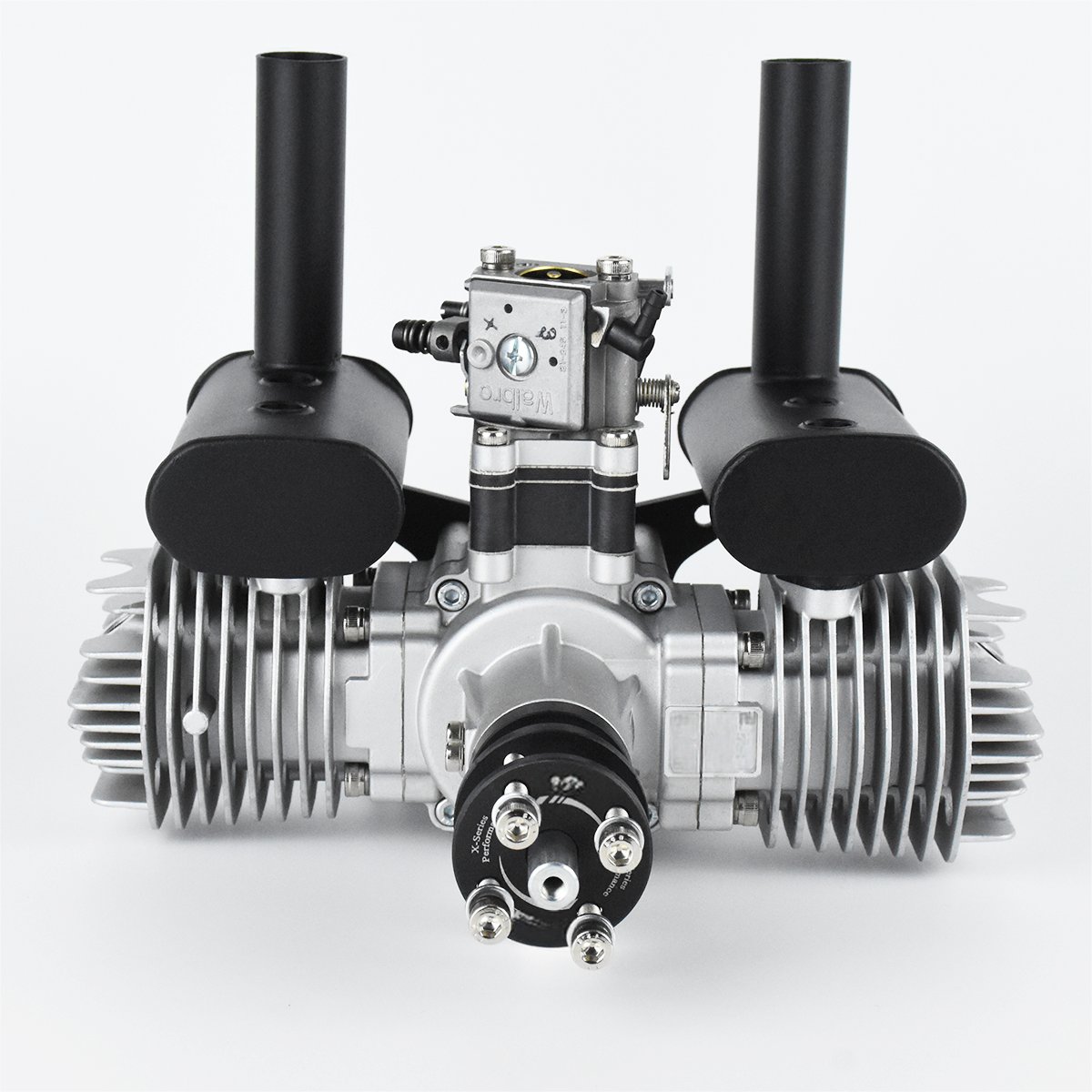

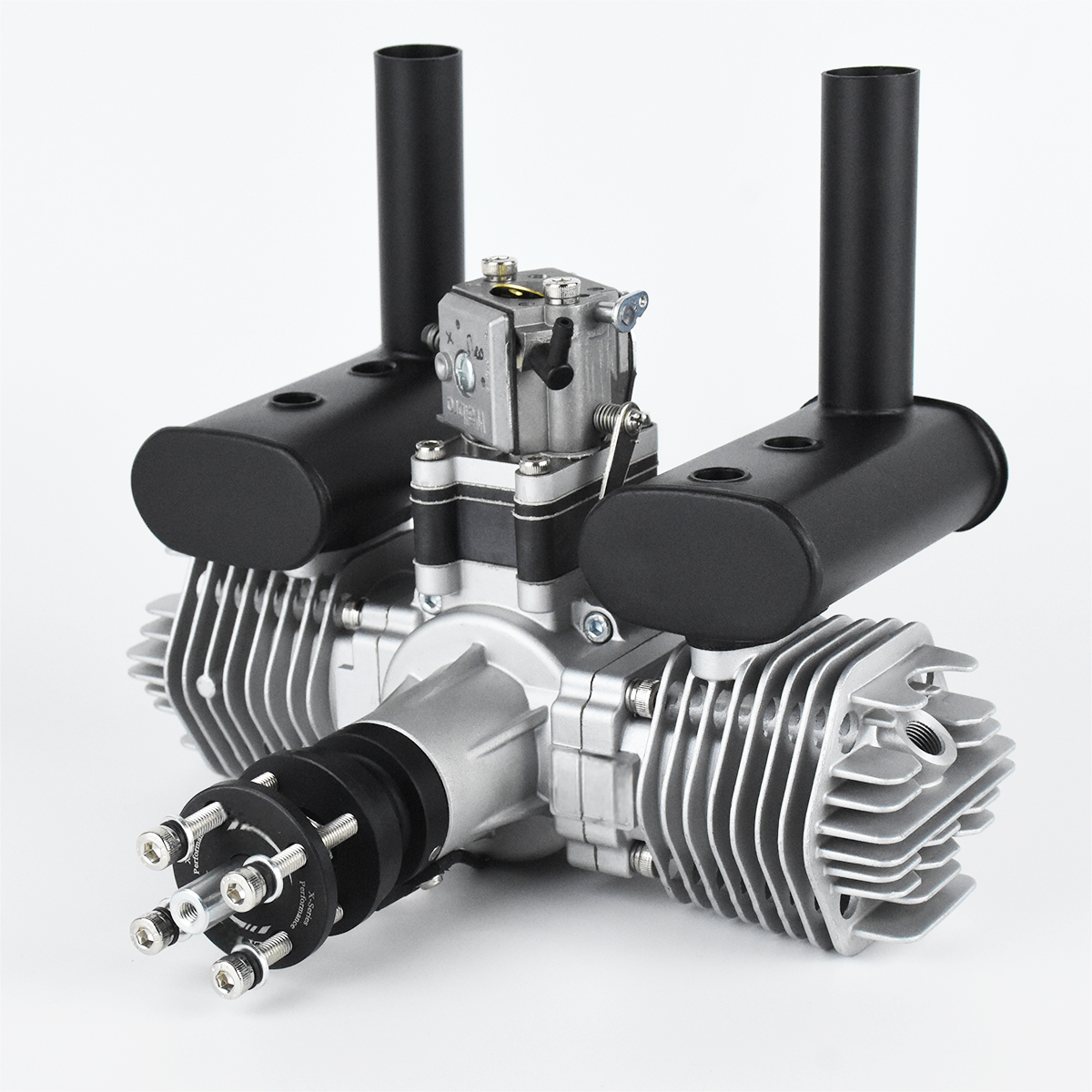

Smooth operator Give your sport aircraft the low-vibration smoothness and unique sound of a horizontally opposed twin!
the gasoline engine is designed for large scale aircraft.
it combines with excellent quality and reasonable price.
