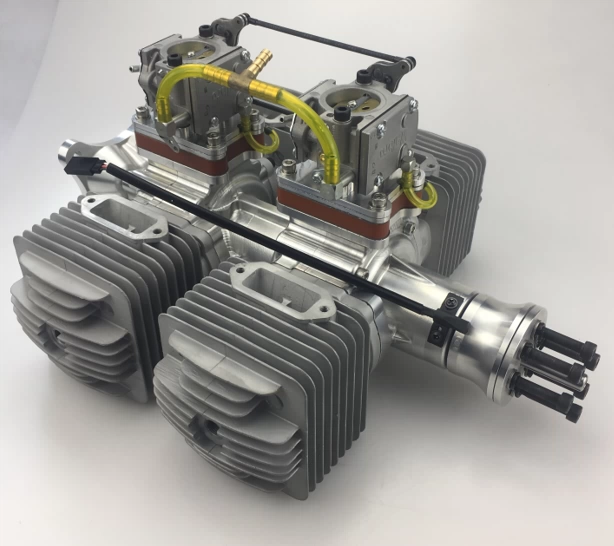

3I-360CC B4 4-cylinder UAV engine

Parameter

1. Carburetor : Walbro
2. Ignition : 3I DC-CDI (Computer Controlled auto advance, electronic ignition system)
3. SPARK PLUG:  IRIDIUM  CM6 size
4. Requires: Gasoline, 2-cycle oil, ignition battery & propeller
5. speed rang : 1200-5800rpm 90Kg Pulling Force/1000meters
6. Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 32:1 for real oil, or 40:1 for synthetic oil)
7. Lubrication Oil : High quality fully synthetic 2 cylinder oil such as Motul 800 2T 100% synthetic racing motro oil , Red line two-stroke racing motor oil , Stihl Ultra high performance 2 cycle fully synthetic engine oil etc .
8. Break in Propeller : 36*10.36*12 (Standard Two leafs prop)
9. Break in Gas/Oil Mix Ratio :40:1 for real oil, or 40:1 for synthetic oil
10. Cooling System : Air Cooled
11. 3I Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

Weight:

1. Engine: 7280g
2. Muffler:240g
3. Ignition Module: 360g
4. Total: Weight: 7880 g

Technical Data:

1. Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack
2. Gasoline/Oil Mix: 32:1 for real oil, or 40:1 for synthetic oil
3. Replacement Spark Plug: NGK CM6 or equivalent
4. Idle Speed: 1200 rpm/min

• New ceramic plating cylinders will bring you indredible flying experience !
• Angled plugs, CM6 Spark Plugs Included.
• This gasoline engine is designed for your large scale aircraft.
• We combine our excellent quality and more power for a reasonable price.
